Powder briquette machine parameter:
Ball brqiquet machine applicable raw material :dust, iron concentrate, raw material powder, manganese ore fines, coal powder, charcoal powder, metallic powder, iron scale, iron sludge, slime peat, fireproof material, desulfurized gypsum and dolomite,etc
The main motor of the ball briquet machine through the V-belt, to the reducer: the reducer passes through the coupling, and then is transmitted to the driving shaft and then a pair of open gears to ensure the synchronization of the two roller shafts (the same speed is opposite). The passive roller is hydraulically driven.
The piston of the oil cylinder is held up (the constant pressure type is held up by the inclined iron), and the system pressure is guaranteed by the hydraulic circuit, the hydraulic control valve and the accumulator.
The adjustment gate is adjusted to make the material evenly enter the middle of the opposite rollers, the unit forming pressure of the material to be compressed by the opposite rollers running in the same speed and reverse direction increases from small to large, and the forming pressure at the center line of the opposite rollers reaches the maximum value, and the material passes through the After the line, the molding pressure decreases rapidly, so that the material enters the ball-off state, and the ball is removed smoothly.

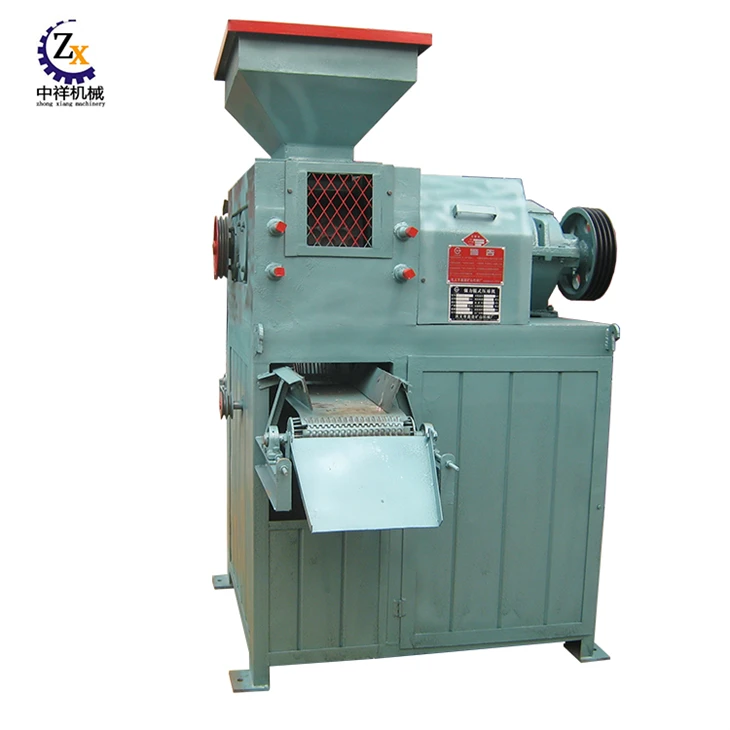

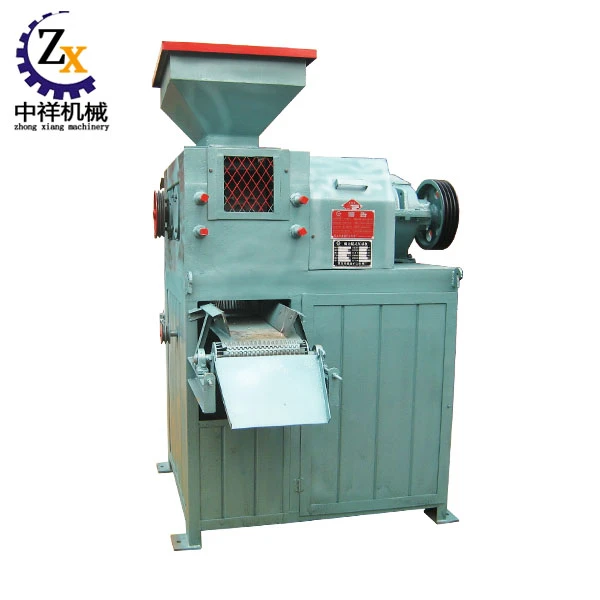

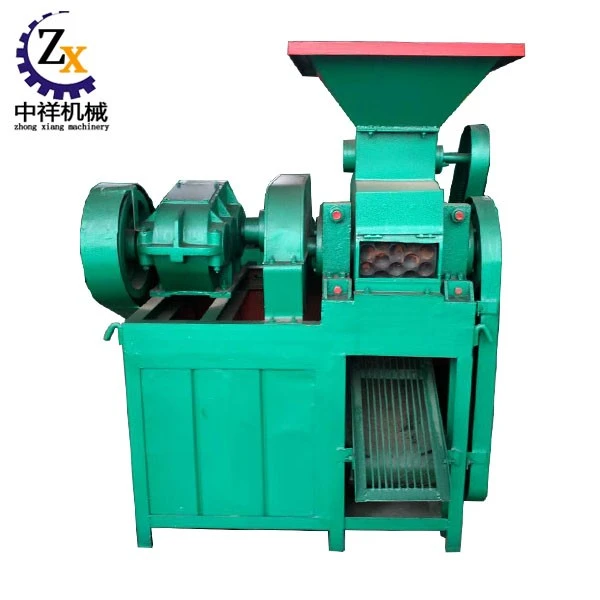

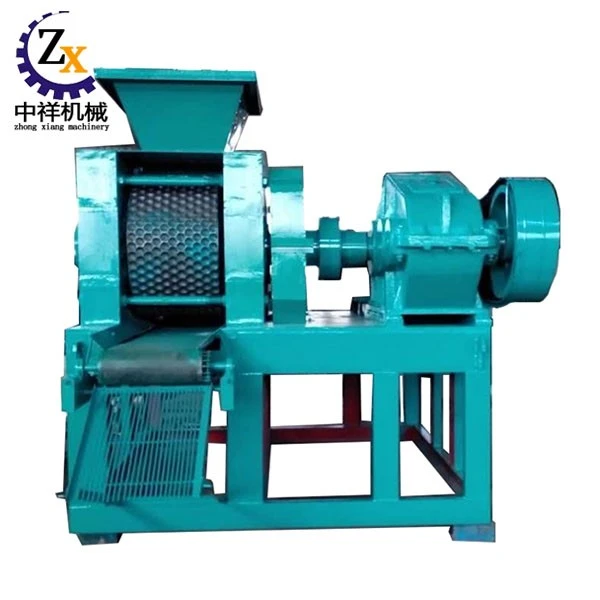

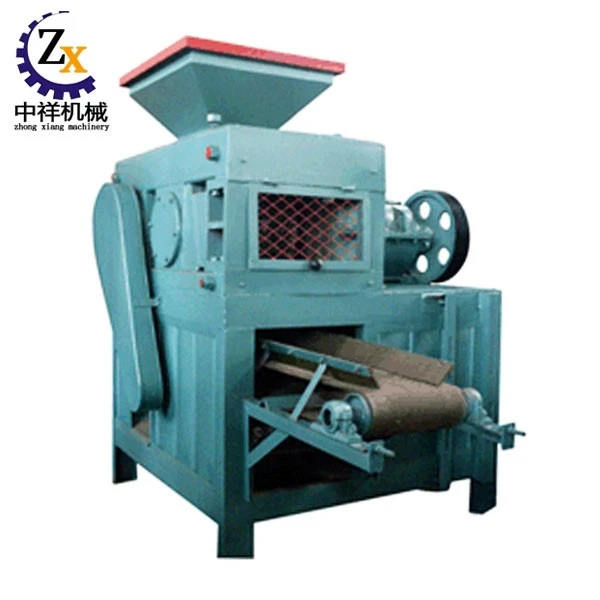

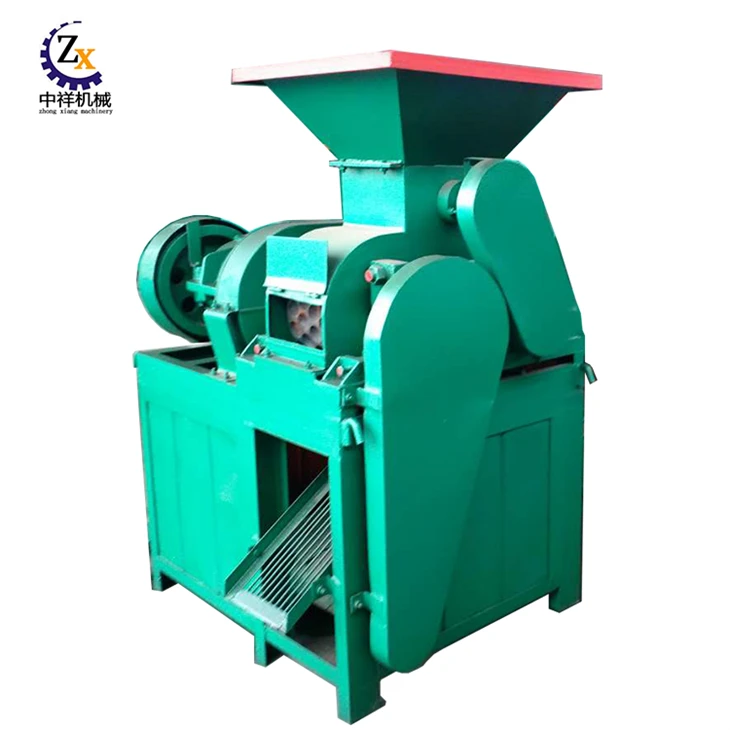

The ball briquet machine is a kind of equipment that compresses powdery materials into balls. Compared with other similar products, Dongfang roller briquetting machine has obvious advantages such as high ball forming rate, low power consumption, compact structure, easy maintenance and debugging, etc. It is undoubtedly an ideal key for the Pidgeon magnesium smelting process. equipment.
In order to meet the requirements of material forming, the pre-pressing screw adopts an electromagnetic speed-regulating motor, and the speed-regulating method is manual control. The user can appropriately change the speed of the pre-pressing machine according to the ball-forming situation to achieve the highest ball-forming rate and maximum production capacity. ,
The pressed material is passed through the screening machine, and the qualified pellets on the screen are packaged.
Q: Do your products have certifications?
Q: How is the machine packaged when shipped?
Q: How long is the delivery time?
Q: How about the payment items?
Q: Which country have you exported to?
Q: How is your production capacity?
Q: Can we visit your factory?
Q: How to connect with you?
Hot Tags: ball briquet machine, China ball briquet machine manufacturers, electric dough mixer, alfalfa pelletizer, rice husk charcoal making machine, Charcoal Briquette Press Machine, food mixer machine, tilting concrete mixer
