Limestone Jaw Crusher Parameter
Model | Motor power(kw) | Processing capacity (m³/h/t) | Weight (t) | Feed port size(mm) | Discharge size(mm) |
150*250 | 5.5 | 2-6 | 1 | 125 | 15-45 |
200*300 | 11 | 4-14 | 1.5 | 180 | 20-50 |
200*350 | 11 | 5-15 | 1.8 | 180 | 20-50 |
250*400 | 15 | 5-22 | 2.8 | 210 | 20-50 |
400*600 | 30 | 16-60 | 7 | 340 | 40-80 |
500*750 | 55 | 43-102 | 13.5 | 425 | 50-100 |
600*900 | 75 | 51-145 | 19.2 | 500 | 65-180 |
750*1060 | 110 | 122-223 | 29 | 630 | 80-180 |
900*1200 | 132 | 280-430 | 45 | 780 | 95-180 |
150*750 | 15 | 8-28 | 3.5 | 120 | 18-48 |
250*750 | 22 | 22-60 | 5.5 | 210 | 25-60 |
250*1000 | 30 | 25-65 | 7 | 210 | 25-60 |
250*1200 | 37 | 30-78 | 8.2 | 210 | 25-60 |
300*1300 | 75 | 45-110 | 12 | 250 | 20-90 |
Product description

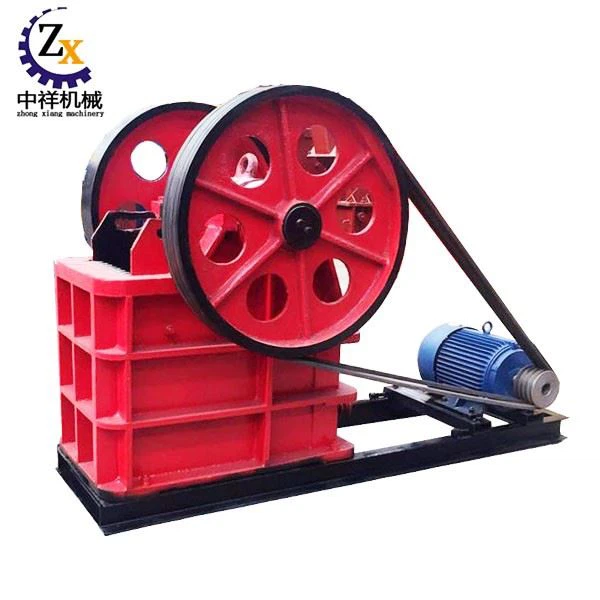

Limestone jaw crusher is commonly known as jaw crusher, also known as tiger's mouth. The jaw crusher consists of two jaw plates, namely the movable jaw and the stationary jaw.
The safety mechanism and adjustment mechanism of the jaw crusher produced by the movable jaw and the static jaw consist of two jaw plates. It realizes the jaw crusher insurance mechanism and adjustment mechanism produced by the adjustment party, and achieves the purpose of safety insurance and convenient adjustment.
At the same time, low noise and dust; simple structure, reliable work, low operating cost; safe and reliable lubrication system, easy replacement of parts, simple equipment maintenance; deep crushing cavity, no dead zone, improve feeding capacity and output; discharge port adjustment The range is large, which can meet the requirements of different users.
Limestone Jaw Crusher Work principle
The stones fall directly into the high-speed turntable from the upper part of limestone jaw crusher; under the action of high-speed centrifugal force, another part of the flying stones surround the turntable in an umbrella shape to generate high-speed collision and high-density crushing.
The vortex motion is formed between the vortex motion turntable and the box. The vortex motion is formed between the turntable and the box for multiple blows, frictions, and extrusions, which are directly discharged from the bottom. Form a closed loop for multiple cycles, and the required particle size is controlled by the screening equipment.
Structure
Limestone jaw crusher is mainly composed of frame, eccentric shaft, large pulley, flywheel, movable jaw, side guard, toggle plate, toggle back seat, clearance adjustment screw, return spring, fixed jaw plate and movable jaw plate, etc. to insurance.
Limestone Jaw Crusher Packing and delivery
Packaging Details: We will do different packaging according to different sizes of the Limestone Jaw Crusher, standard international export packaging, container, wooden case.
Delivery time: We will customize according to the actual needs of customers. Senior designers start designing solutions. After receiving the deposit, we will complete the shipment within 15 - 25 working days.
