Rock Crusher Parameter
Model | Motor power(kw) | Processing capacity (m³/h/t) | Weight (t) | Feed port size(mm) | Discharge size(mm) |
150*250 | 5.5 | 2-6 | 1 | 125 | 15-45 |
200*300 | 11 | 4-14 | 1.5 | 180 | 20-50 |
200*350 | 11 | 5-15 | 1.8 | 180 | 20-50 |
250*400 | 15 | 5-22 | 2.8 | 210 | 20-50 |
400*600 | 30 | 16-60 | 7 | 340 | 40-80 |
500*750 | 55 | 43-102 | 13.5 | 425 | 50-100 |
600*900 | 75 | 51-145 | 19.2 | 500 | 65-180 |
750*1060 | 110 | 122-223 | 29 | 630 | 80-180 |
900*1200 | 132 | 280-430 | 45 | 780 | 95-180 |
150*750 | 15 | 8-28 | 3.5 | 120 | 18-48 |
250*750 | 22 | 22-60 | 5.5 | 210 | 25-60 |
250*1000 | 30 | 25-65 | 7 | 210 | 25-60 |
250*1200 | 37 | 30-78 | 8.2 | 210 | 25-60 |
300*1300 | 75 | 45-110 | 12 | 250 | 20-90 |
Rock Crusher Main features
1 The gasket type discharge port adjustment device is reliable and convenient, the adjustment range is large and the flexibility of rock crusher is increased.
2 The lubrication system is safe and reliable, the component replacement is convenient, and its maintenance is simple.
3 Its structure is simple, the work is reliable and the operating cost is low.
4 Energy saving of equipment: 15%～30% energy saving for single machine, more than double the energy saving of the system
5 The adjustment range of discharge outlet is large, which can meet the requirements of different users.
Rock Crusher Application field
The rock crusher is a kind of jaw crusher, which has the characteristics of large crushing ratio, uniform product size, simple structure, reliable work and easy maintenance. The jaw crusher is mainly used for coarse and medium crushing of various ores, rocks and other materials. And widely used in mining, building materials, chemical, metallurgy and other industries.

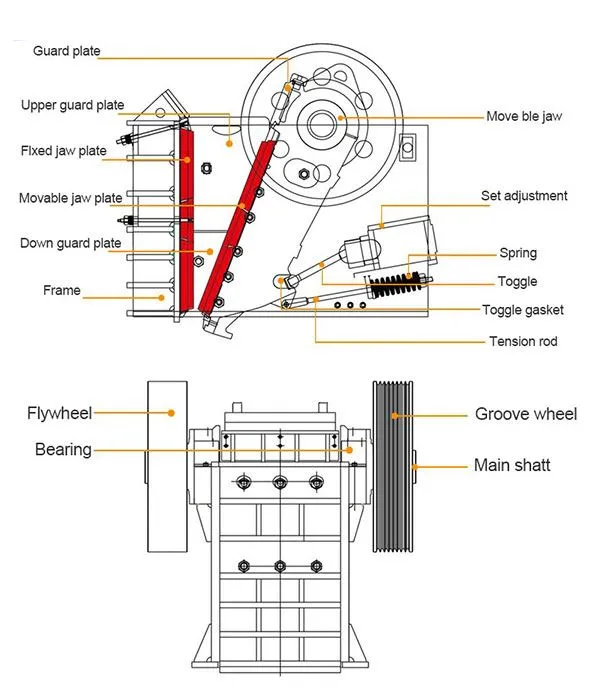

Rock Crusher Working principle
The working mode of rock crusher is a curved extrusion type. The belt and pulley are driven by the motor, and the eccentric shaft makes the movable jaw move up and down. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, and the movable jaw plate is pushed to approach the fixed jaw plate.
At this time, the material is crushed or split to achieve the purpose of crushing. When the movable jaw descends, the angle between the toggle plate and the movable jaw becomes smaller. The movable jaw leaves the fixed jaw under the action of the pull rod and the spring, and the crushed materials are discharged from the lower mouth of the crushing chamber.
FAQ
1. Are you a Rock Crusher manufacturer or a trading company?
We are a professional manufacturer of mining crushing machinery and related machinery, such as jaw crushers, impact crushers, cone crushers, and heavy hammer crushers.
2. What about the delivery time?
Machines with stock can be shipped immediately, and machines without stock can be shipped within 5-7 days.
3. How long is the warranty period?
Warranty for 12 months, no artificial and deliberate damage.
4. What should I do if I encounter difficulties during use?
We will provide English manuals and videos explaining how to solve the problem, and when necessary, engineers will send someone to your factory.
Q: Do your products have certifications?
Q: How is the machine packaged when shipped?
Q: How long is the delivery time?
Q: How about the payment items?
Q: Which country have you exported to?
Q: How is your production capacity?
Q: Can we visit your factory?
Q: How to connect with you?
Why choose us?
- We take pride in our extensive range of Stone Crusher products and professional services.
- We strive for the goal of 'being an industry leader'! In the future, we will keep pace with the times, continue to introduce talents, improve the management mechanism, providing users with better products and better services!
- Our Stone Crusher products are backed by professional service and support.
- We can provided good quality with competitive price for you.
- We are a reliable and trustworthy supplier of Stone Crusher products and services.
- In the spirit of establishing the company image and being responsible for users, the company takes innovation and development as its business purpose, and takes improving quality, reputation and after-sales service as its development principle, and keeps forging ahead.
- We are committed to providing our customers with the highest quality Stone Crusher products and services.
- We focus on market demand and provide high-end Rock Crusher and technical solutions for our customers through comprehensive innovation and overall synergy.
- Our factory is staffed by skilled professionals who are dedicated to producing the best Stone Crusher products.
- Inherited and developed through years of accumulation, today we are a leading enterprise in the research and development of Rock Crusher in China.
Hot Tags: rock crusher, China rock crusher manufacturers, crusher stone machine, Small Stone Crusher Machine, singh bullet jaw crusher, sand making machine, secondary impact crusher, hammer for crusher
