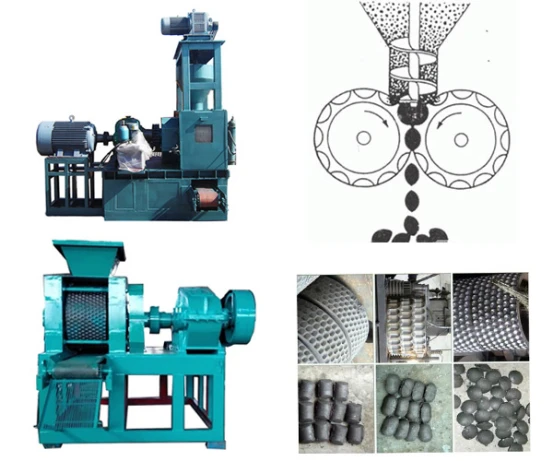

The mineral charcoal coal powder briquetting machine consists of three parts: the feeding part; the transmission part; the forming part.1. The feeding part is mainly to realize quantitative feeding to ensure that the material enters the pair of rollers evenly. The screw feeding device is driven by an electromagnetic speed-regulating motor, and is rotated by a pulley and a worm reducer to force the material to be pressed into the main feeding port.
The main transmission system of mineral charcoal coal powder briquetting machine is: motor -- triangle belt -- reducer -- open gear -- roller. The main engine is powered by an electromagnetic speed-regulating motor, and is transmitted to the driving shaft through a pulley, a cylindrical gear reducer, and a rod-pin coupling.
The main engine is powered by an electromagnetic speed-regulating motor, which is transmitted to the drive shaft through a pulley, a cylindrical gear reducer, and a rod-pin coupling. The drive shaft and driven shaft run synchronously through open gears. A hydraulic device is installed behind the passive bearing seat.
The drive shaft and the driven shaft run synchronously through open gears. A hydraulic device is installed behind the passive bearing housing. The hydraulic protection device is driven by the hydraulic pump to drive the high pressure oil into the hydraulic cylinder to make the piston produce axial displacement. The front end of the piston rod rests on the bearing housing to meet production pressure requirements.
