Cone Rock Crusher Parameter：
Model | Diameter of cone(mm) | Discharging Size | Max Feeding Size | Capacity | Power | Weight | Dimensions |
PYB-600 | 600 | 12-25 | 65 | 15-25 | 30 | 5.5 | 1740*1225*1940 |
PYD-600 | 600 | 3-13 | 36 | 5-23 | 30 | 5.5 | 1740*1225*1940 |
PYB-900 | 900 | 15-50 | 115 | 50-90 | 55 | 10.18 | 1990*1640*2380 |
PYZ-900 | 900 | 5-20 | 60 | 20-65 | 55 | 10.19 | 1990*1640*2380 |
PYD-900 | 900 | 3-13 | 40 | 15-50 | 55 | 10.27 | 1990*1640*2380 |
PYB-1200 | 1200 | 20-50 | 145 | 110-200 | 110 | 24.7 | 2805*2300*2980 |
PYZ-1200 | 1200 | 8-26 | 100 | 50-150 | 110 | 25 | 2805*2300*2980 |
PYD-1200 | 1200 | 3-15 | 50 | 18-105 | 110 | 25.6 | 2805*2300*2980 |
PYB-1750 | 1750 | 25-60 | 215 | 280-480 | 155-160 | 50.6 | 3610*2950*4185 |
PYZ-1750 | 1750 | 10-30 | 185 | 115-320 | 155-160 | 51 | 3610*2950*4185 |
PYD-1750 | 1750 | 5-15 | 85 | 75-230 | 155-160 | 50.5 | 3610*2950*4185 |
PYB-2200 | 2200 | 30-60 | 300 | 590-1000 | 260-280 | 84 | 4790*3430*5080 |
PYZ-2200 | 2200 | 10-30 | 235 | 200-580 | 260-280 | 85 | 4790*3430*5080 |
PYD-2200 | 2200 | 5-16 | 110 | 120-370 | 260-280 | 85 | 4790*3430*5080 |
Introduction
The Cone Rock Crusher is one of the most widely used crushing equipment in crushing operations, and countries all over the world attach great importance to its improvement. It is mainly used for the medium and fine crushing of various high hardness ores.
Working principle
When the Cone Rock Crusher working, transmission shaft is driven by pulley or coupling. At same time, the cone part of the machine rotates around a fixed point under the force of eccentric sleeve.
Product advantage
1. High crushing efficiency. The perfect combination of crushing speed, stroke and crushing cavity design.
2. Wide range of applications. Higher quality and productivity.
3. High qualification rate of finished products. High yield of qualified fine-grained grades with good granularity.
4. Easy to maintain. Low operating and wear and tear costs and short downtime.
Application materials
Cone Rock Crushers are now widely used in construction waste, sand and gravel quarries, mining and other fields.
Packing and shipping
FAQ
1.What is the warranty?
1 year
2.What is the main structure?

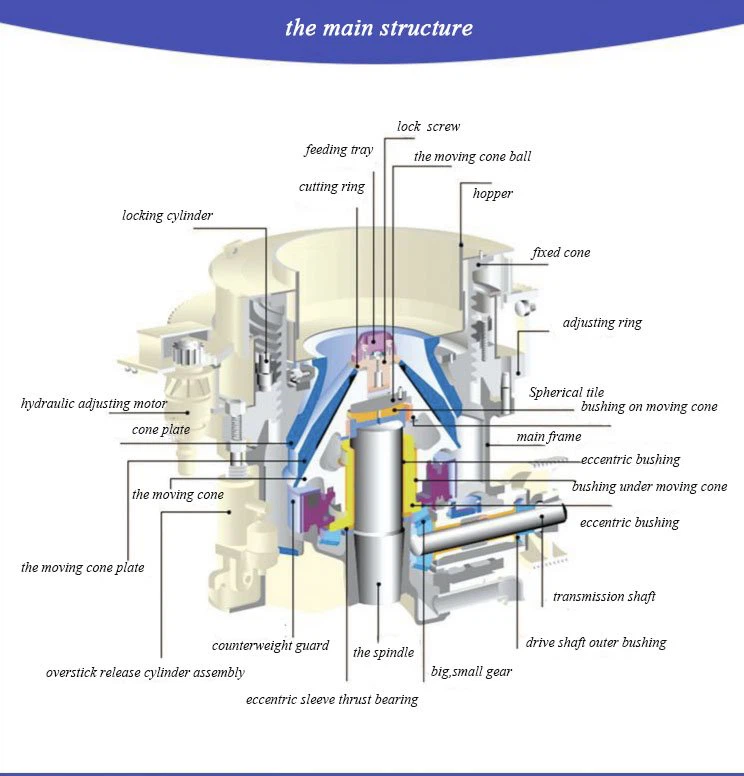

Cone Rock Crusher is mainly composed of frame, transmission section, eccentric sleeve section, bowl bearing section, crushing cone section, supporting sleeve section, adjusting sleeve section, spring section, hydraulic station for adjusting the discharge opening and thin oil station for providing lubricating oil, etc.
