Toothed Roller Crusher Parameter：
Model | Roller Diameter (mm) | Roller Length (mm) | Feeding Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power (kw) |
2GP-400X250 | 400 | 250 | ≤ 25 | 1-8 | 5-10 | 5.5*2 |
2GP-500X450 | 500 | 450 | ≤ 30 | 1-15 | 10-20 | 11*2 |
2GP-610X400 | 610 | 400 | ≤ 40 | 1-20 | 13-35 | 15*2 |
2GP-750X500 | 750 | 500 | ≤ 40 | 2-20 | 15-40 | 18.5*2 |
2GP-800X600 | 800 | 600 | ≤ 40 | 3-20 | 20-50 | 22*2 |
2GP-1000X500 | 1000 | 500 | ≤ 120 | 3-20 | 30-60 | 37*2 |
2GP-1100X600 | 1100 | 600 | ≤ 150 | 3-20 | 50-80 | 37*2 |
2GP-1000X1000 | 1000 | 1000 | ≤ 120 | 3-20 | 60-80 | 45*2 |
Introduction

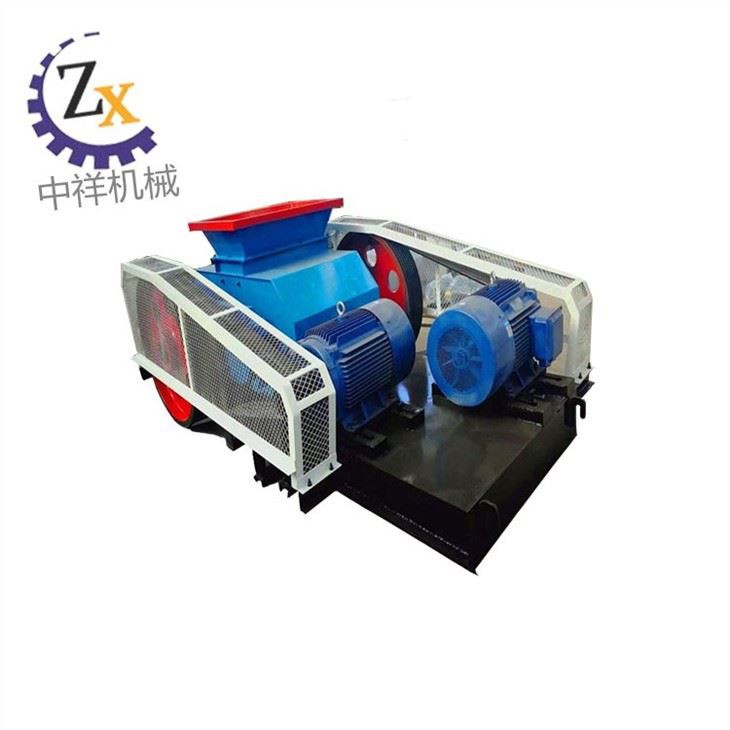

Toothed roller crusher is also called double roll crusher which can crush various kinds of stone with compressive strength less than 160MPa, mainly using two rods rotating in opposite directions to crush the material, so as to get the standard sand and stone material, widely used in coal, metallurgy, mining, construction and other industries, it is a very classic and practical small crusher.
Application Scope
The toothed roller crusher is widely used in metallurgy, building materials, refractory materials and other industrial sectors for crushing high and medium hardness materials.
It is mainly used for secondary crushing or tertiary crushing of raw materials such as coal, coal gangue, coke, limestone, sulfur ore and phosphate ore.
Working Principle
There are three types of common roll crushers: single roll crusher, double roll crusher and four roll crusher. During the working process, the material falls between two rolls and will be crushed. Usually, the material will be discharged from the bottom.
When encountering materials with high hardness, the rolls will automatically give way through hydraulic cylinders or springs, increasing the space between the two rolls, causing hard materials and non-crushable materials to fall, protecting the machine from damage. Changing the space between the two rolls can definitely control the maximum particle size of the discharged materials.
Feature
1.Toothed Roller Crusher has a high crushing capacity, which is more safe and reliable.
2. Roller spacing hydraulic adjustment, roller bearing lubrication.
3. Tooth profile optimization design, tensile shear selective crushing, discharge material evenly.
4. Convenient repair, overload protection, sensitive, safe and reliable.
Packing
When ordering Toothed Roller Crusher, please pay attention:
FCL & LCL export standard container 20GP/40GP/40HQ.
FCL: The main machinery gold shakers are packed naked, loose in containers, spare parts in wooden boxes or according to your special requirements.
LCL: Machinery is packed in steel frame, base and deck are packed separately.
Transportation: by sea, air or express, it depends on you.
Payment terms. Preferably T/T or L/C. T/T: 50% deposit, the balance is paid before delivery.
We will take photos of your products and show them to you before delivery. Also, we will keep you informed of any updates, including shipping, before you receive the product to give you peace of mind.
Delivery time: Delivery within 15 days after payment.
FAQ
Q: How to pay?
A:TT and L/C are acceptable, TT will be more popular. 50% deposit before production, 50% balance before TT loading.
Q: What is the delivery time?
A: It depends on the order quantity. Generally, the delivery time is within 3-4 weeks.
Q: How is the sewage treatment plant packaged?
A: We use standard airworthy packaging.
Q: How to keep your equipment free from corrosion?
A: We use world famous paints, such as epoxy coal tar pitch and so on. In addition, we strictly follow standard processes for painting.
Q: How to install the device after it arrives at the destination?
A: We will provide you with detailed diagrams, and will teach your workers how to use and maintain.
Q: What about the warranty?
A: If the Toothed Roller Crusher fails during the warranty period, our company promises to propose a solution within 24 hours. If it is not due to human reasons, our company will provide free maintenance to ensure the normal operation of the equipment.
Our services
1) Pre-sales service. Provide free project design, process design and choose the right equipment for you.
2) Intermediary service. Accompany you to complete equipment acceptance, draft construction plan and detailed process, and complete export process.
3) After-sales service. Provide considerate technical guidance in installation, commissioning and operator training. If you need, we can provide service at any time.
About us
With modern manufacturing capacity and excellent R&D team of professional engineers, our company has been committed to the research and development of new products and new technologies since its establishment, so that the products we develop have reached the world's advanced level.
We can not only provide a full range of crushing and screening equipment, including jaw crushers, cone crushers, impact machines, mobile crushing screens and other equipment, but also provide overall solutions.
Products are widely used in construction waste recycling, mineral processing and other fields, and are also exported to many countries and regions around the world. Our purpose is to provide reliable products and services to customers around the world and create value for customers.
Q: Do your products have certifications?
Q: How is the machine packaged when shipped?
Q: How long is the delivery time?
Q: How about the payment items?
Q: Which country have you exported to?
Q: How is your production capacity?
Q: Can we visit your factory?
Q: How to connect with you?
Why choose us?
- Our fast and reliable shipping ensures that your Roller Crushers arrive on time.
- The company has R&D Department, Technical Support Department, Channel Department, Commercial Department, Engineering Department, After-sales Service Department and other departments. We have a young, knowledgeable and professional high-quality team.
- We offer fast and efficient shipping to wherever you are in the world.
- Our Toothed Roller Crusher is of high quality and low price. We will not mix defective products for sale. We strictly control the quality of our products from material selection to production.
- We are a Chinese factory that specializes in high-quality Roller Crusher products and professional services.
- With the continuous expansion of the group's business, we have proposed a higher level of service goals to help Toothed Roller Crusher develop, forming a unique charm that cannot be copied.
- Our team of experts are available to answer any questions you may have about our Roller Crushers.
- Our excellent corporate culture accumulated in the course of development is the driving force for the sustainable development of the company.
- Our Roller Crushers are made with high-quality materials and precision engineering.
- With high quality and attractive prices, our customers are all over the country and region.
