Working principle:

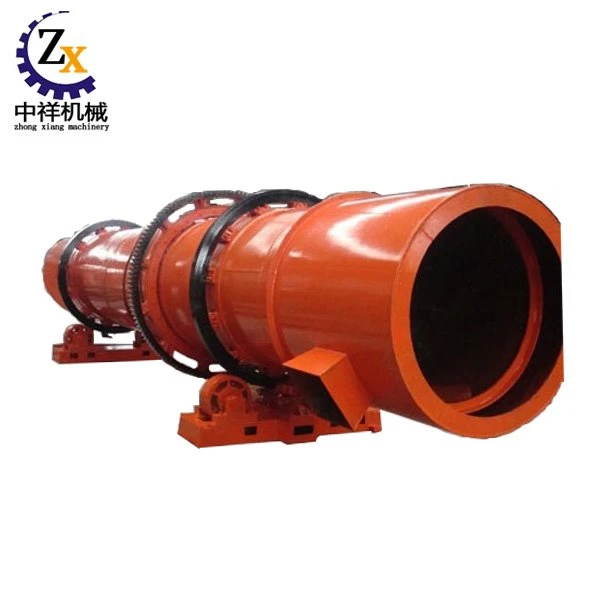

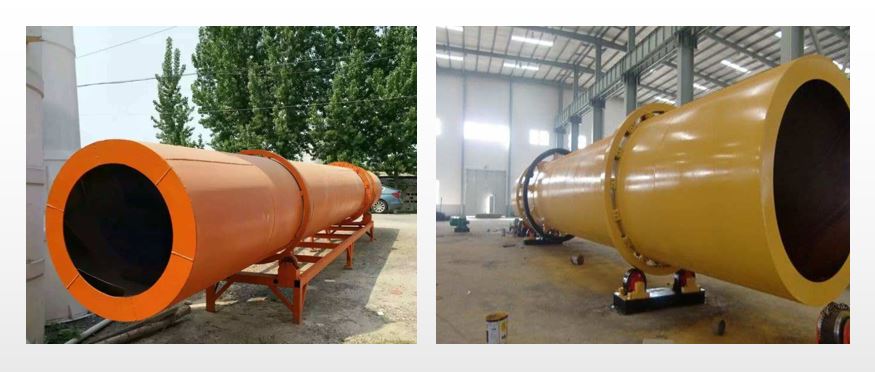

The coal dryer is a slightly inclined and rotatable cylinder. The wet material enters from the upper part of one end, and the dry material is collected from the lower part of the other end. Hot air enters from the feed end or the discharge end, and is discharged from the upper part of the other end. The drum is equipped with a forward copying board, so that the material is continuously picked up and sprinkled during the rotation of the drum, so that it is fully in contact with the hot air flow, so as to improve the drying efficiency and move the material forward. The heat source of drying materials is generally hot air, high-temperature flue gas, water vapor, etc.
Parameters:
Model | Capacity (t/h) | Motor power (kw) | Motor Model | Gearbox model | Speed ratio | Weight (T) |
ø 1.2*10 | 2.5 | 7.5 | Y160M-R3 | ZL50-16-Ⅰ | ….. | 13.5 |
ø 1.5*12 | 3.3-4.9 | 10 | Y160L-6-B3 | JZQ500-Ⅲ-2F | ….. | 18.9 |
ø1.5*12 | 4-6 | 15 | Y200L1-6 | JZQ500-Ⅲ-2F | ….. | 17.8 |
ø1.8*12 | 4-6 | 18.5 | Y160L-6 | ZQ50-16Ⅱ-2 | 16.46 | 22.83 |
ø2.2*12 | 7-12 | 18.5 | Y200L7-6 | JZQ650-Ⅲ | 31.5 | 37.6 |
ø2.2*14 | 7-12 | 22 | Y200L7-6 | JZQ650-Ⅲ | 31.5 | 40 |
ø2.2*16 | 12 | 30 | Y225M-6 | JZQ750-Ⅲ | 31.5 | 45 |
ø2.4*14 | 12 | 30 | Y250M-6 | JZQ750-Ⅲ | 31.5 | 51 |
ø 2.4*18 | 10-13 | 37 | Y250M-6 | ZL85-13-Ⅰ | 27.16 | 54 |
ø 2.4*20 | 10-14 | 37 | Y250N-6 | ZL85-13-Ⅰ | 27.16 | 54.14 |
ø 3*20 | 25 | 55 | Y250M-4 | ZL100-16-Ⅰ | 41.52 | 78 |
ø 3*25 | 32-36 | 75 | YR280M-4 | ZL100-16-Ⅰ | 41.52 | 104.9 |
Applicable raw materials:
The drying materials for coal dryer can be lignite, dry powder mortar, cement plant slag, coal gangue, fly ash, gypsum, iron powder, limestone, etc.
Precautions:
1. The newly installed wheel tyres of coal dryer are prone to loosening, so check them frequently;
2. The shaft bears the full load of the negative machine, so good lubrication has a great relationship with the life of the bearing. It directly affects the service life and operation rate of the machine. Therefore, the injected lubricating oil is required to be clean and well sealed. The main oil filling point of the machine.
(1) Rotating bearing.
(2) Roll bearing.
(3) All gears.
(4) Movable bearing and sliding plane.
