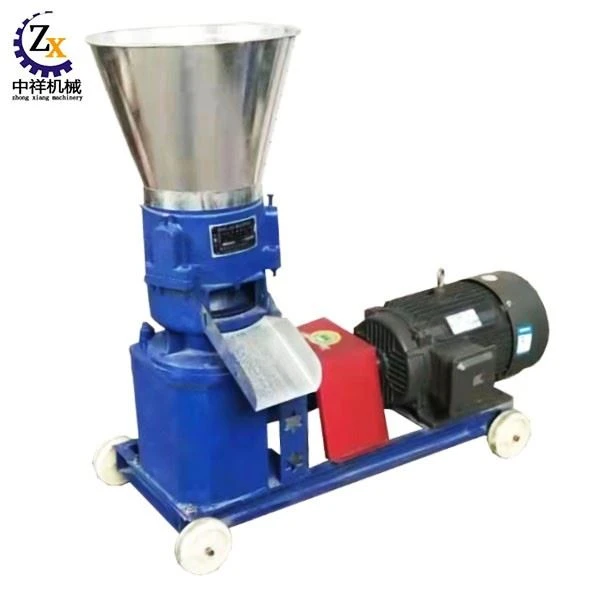

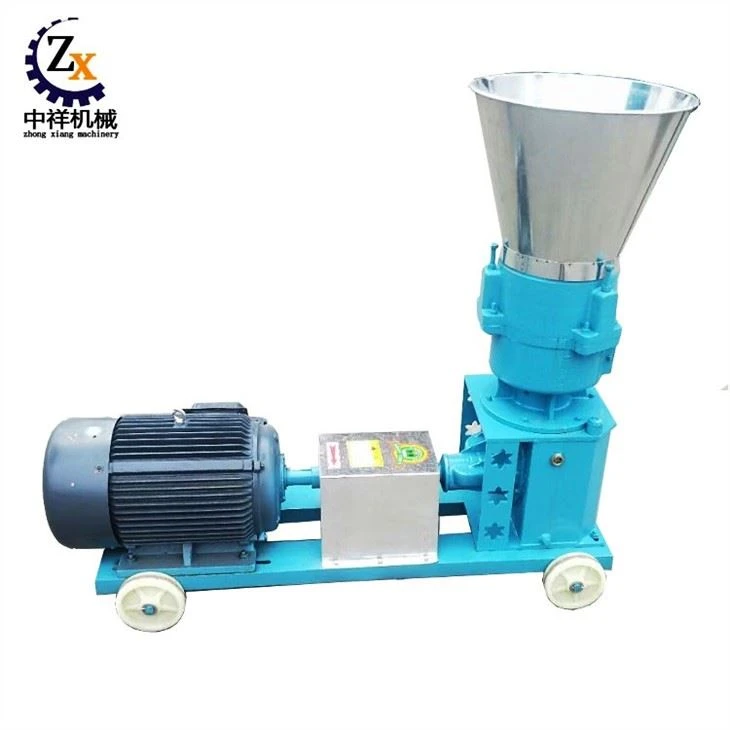

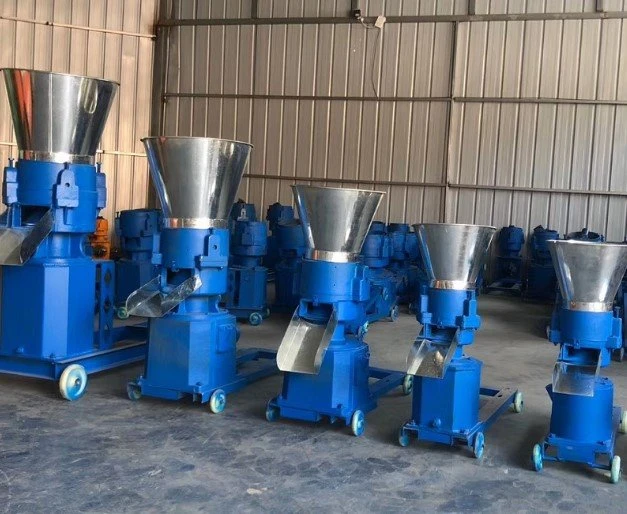

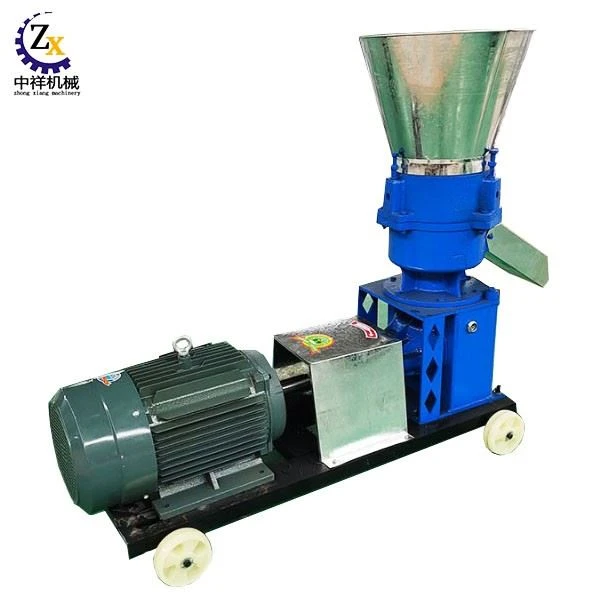

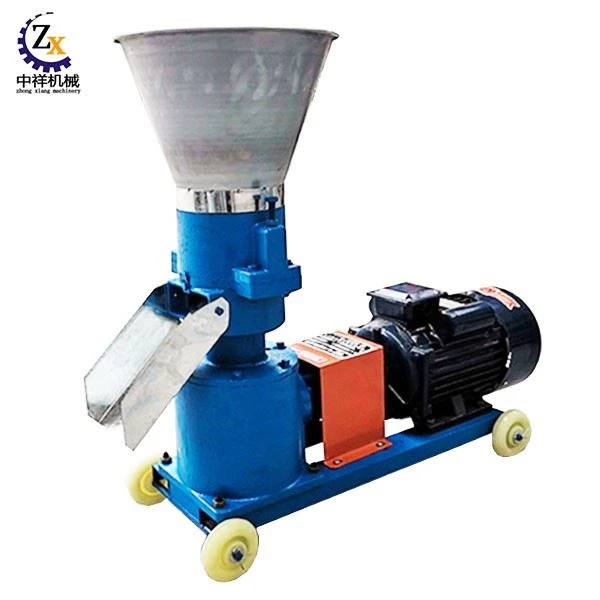

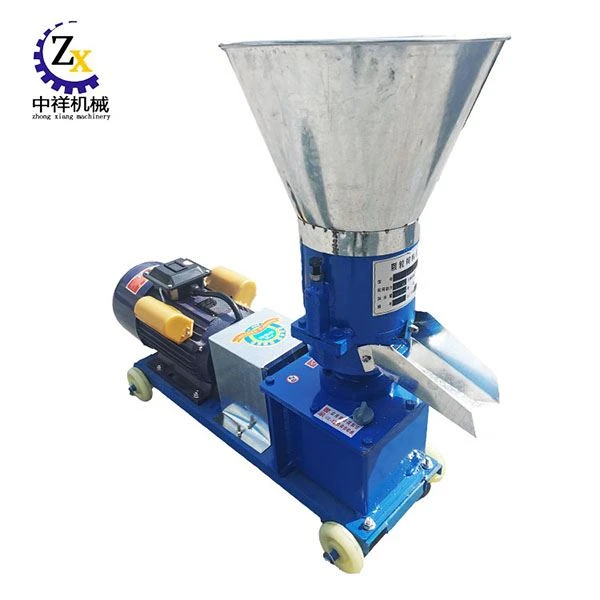

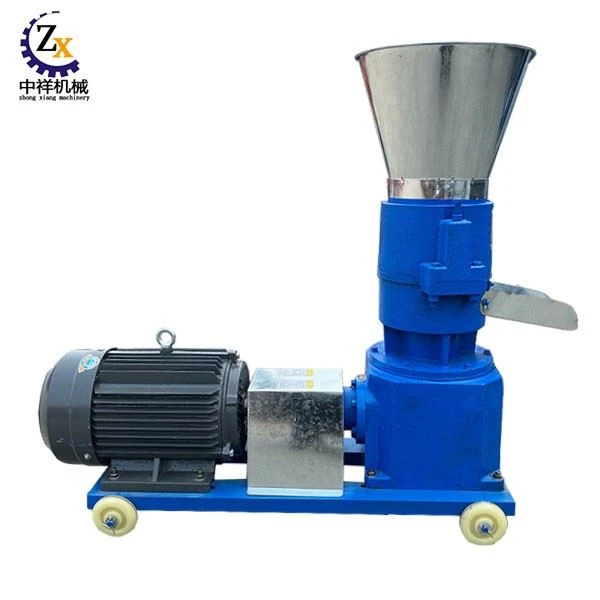

Feed Granulator

Feed Granulator Parameter：

Introduction

Feed granulator is mainly suitable for professional households and small farms in rural areas, rabbit farms, pig farms, cattle farms, sheep farms, dog farms and so on. Crude fiber granulation such as: sawdust, rice husks, cotton stalks, cottonseed husks, weeds and other crop straws, household waste, factory waste and materials with low adhesion and difficult to form.

Product advantages

Powerful core motor

Easy to transport and easy to install of feed granulator. Thickened copper wire coil, less heat, not hot, integrated heat treatment gearbox.

Improve economic efficiency

Dry material processing produces feed pellets with moderate hardness, smooth surface and internal ripening, which can improve the digestion and absorption of nutrients and improve economic benefits.

Wide applicability

Feed Granulator can be processed to produce soybean meal, grain, straw, green feed, meat and bone meal, whey meal, oil, fish meal, miscellaneous meal, etc. We can process poultry, livestock, pet feed (pig feed, cattle feed, sheep feed, fish feed, chicken feed, etc.) feed, duck feed, goose feed, etc.).

Processed feeds are easy to store

Powdered feed and grass meal can be processed without adding a little liquid, which greatly reduces the moisture content of pelleted feed and facilitates storage.

The thickness of the processed feed can be adjusted

The diameter of the grinding hole is 3~5mm, the size is adjustable, and the length is also adjustable. Grass powder granules, grain granules and mixture granules can be processed.

Durable and low noise

The paint surface is sprayed/painted in a dust-free workshop, which is not easy to fall off, has a simple structure, wide applicability, small footprint and low noise.

Precautions

1.Be sure to add gear oil before the new feed granulator is used for the first time to prevent idling from wearing out the transmission parts.

2. Before starting the machine, add less material first, and then turn it on. When the machine is turned off, a little feed should be left in the machine to prevent the machine press roller from idling and contacting the grinding disc.

3. During the granulation process, it is strictly forbidden to contact the pressing roller and the template to idle, and the continuous feeding should not be too fast, not too slow, and not interrupted.

4. If there is no granulation and no material, the template should be removed, the blocked feed should be cleaned hole by hole, some fiber feed should be added appropriately, and the granulation should be restarted.

5. Regularly check the tightness of the screws in all parts of the machine. If there is oil leakage in the gearbox, replace the oil seal in time and check whether the bearing in the machine head is short of oil.

6. When the granulator is working, do not put your hand into the feeding port. If necessary, use a wooden stick to assist with feeding.

7. If the Feed Granulator is stuck during operation, stop the machine immediately, adjust the distance between the roller and the grinding disc, and then restart the machine.

8. After each work, the pressure roller bolts must be loosened.
